850nm MULTI PROJECT WAFER FOR INTEGRATED PHOTONICS

The 850nm multi project wafer (MPW) run is optimized for life sciences, biosensors and other applications where the transmissibility of 850nm near-infrared light is of primary importance.

850nm MPW for life science benefits

With its broad transparency range, our silicon nitride photonic platform enables a range of life science applications including OCT, biosensors and spectroscopy. Technology benefits for these applications include:

  • Compatibility with low cost light sources such as VCSELs
  • Choice of interferometric building blocks for sensitive detection and imaging
  • Low-loss waveguides
  • Integrated benchtop system available for management of fiber interfaces and fluidic handling

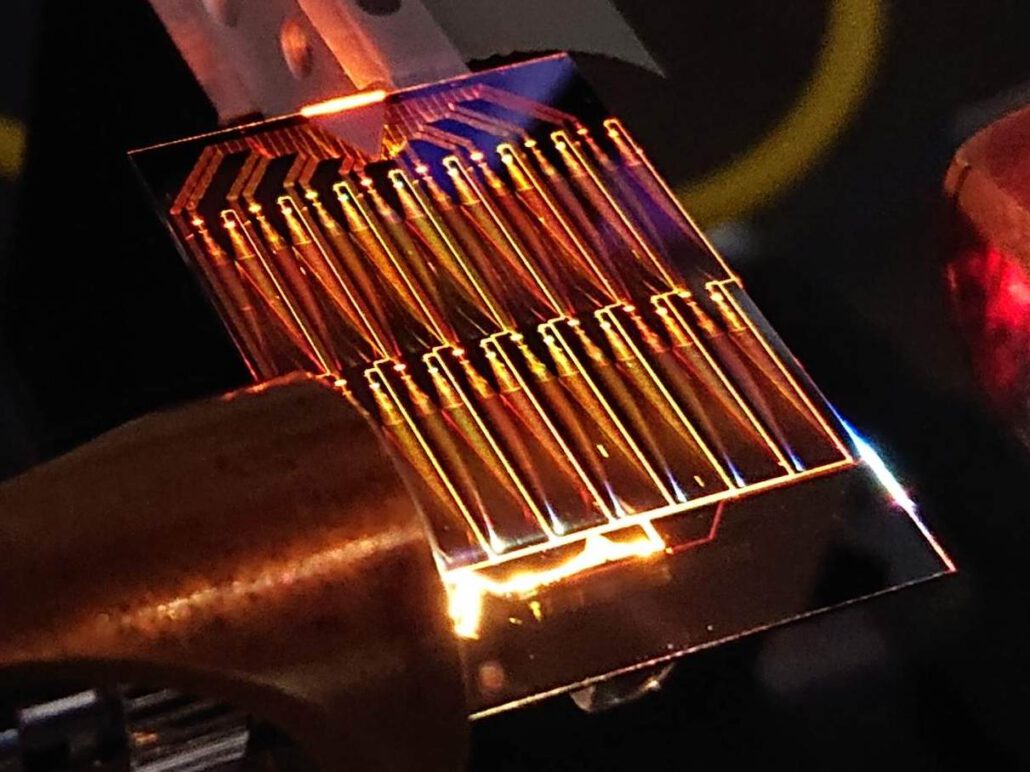

850nm MPW chip for COT life science applications

Next steps

Review the 850nm MPW dates to plan your project, or book your MPW spot in one of the upcoming runs.

Download the 850nm MPW technology and applications overview
